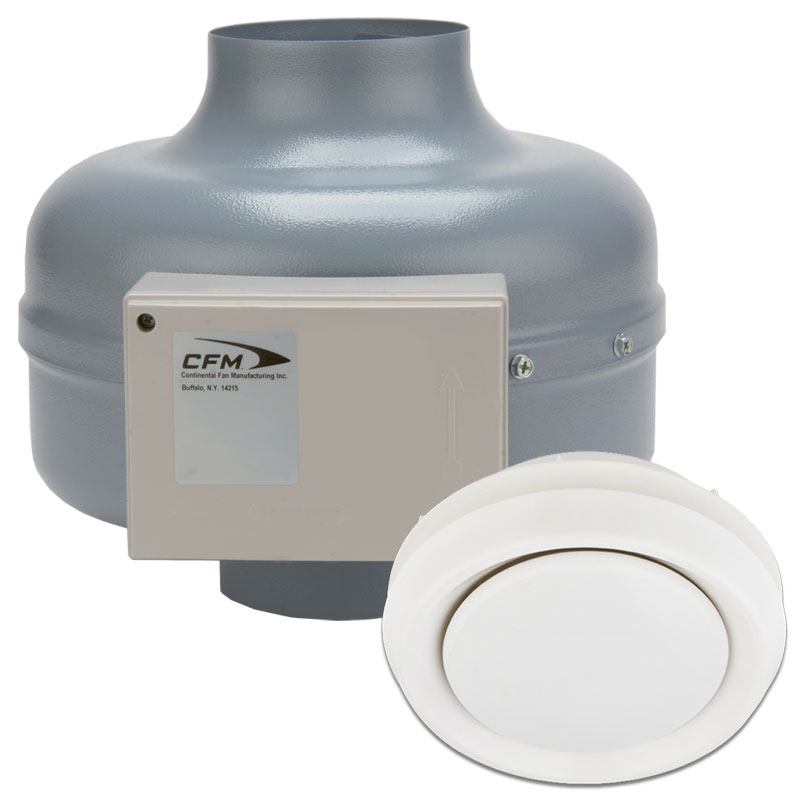

Bathroom Fan Kit w/Adjustable Grille

Description

Attack moisture at its source. Choose the easy-to-install adjustable grille bathroom ventilation fan kit that features the AXC in-line duct fan and our attractive adjustable ventilation grilles. AXC in-line duct fans provide exhaust that is two to four times greater than traditional bathroom fans. The remote mounted design is suitable for direct shower ventilation and for use with multiple ventilation points. All AeroGrilles come with a built-in backdraft damper. Vary airflow to suit your needs.

Adjustable grille bathroom ventilation fan kits are available with one or two ventilation points.

RG Bathroom Ventilation Fan Kits Include:

AXC remote mount in-line fan
Mounting brackets
Adjustable grille/collar
Clamps

DX Bathroom Ventilation Fan Kits Include:

AXC remote mount in-line fan
Mounting brackets
2 adjustable grilles/collars
Clamps
Y-fitting

ROOM SIZE	FAN MODEL	AVAILABLE KITS
Up to 100 sq. ft.	AXC100A-ES: 4" fan, 147 cfm	RG100-ES
Up to 150 sq. ft.	AXC150A-ES: 6" fan, 235 cfm	RG150A-ES DX150A-ES
Over 150 sq. ft.	AXC200A-ES: 8" fan, 368 cfm	DX200A-ES

Airflow Performance (cfm) for AXC Fans

MODEL	WATTS	RPM	0" SP	0.2" SP	0.4" SP	0.6" SP	0.8" SP	1.0" SP	1.2" SP
AXC100A-ES	43.3	2580	147	130	107	82	57	34	11
AXC150A-ES	46.8	2390	235	190	148	97	44
AXC200A-ES	84.5	2500	368	300	234	184	149	114	70

Fan Dimensions

Select the Charts / Diagrams tab below

Features & Benefits of AXC In-line Duct Fans

Remote mounted in-line duct fan design
Heavy-gauge, drawn steel housing with baked epoxy finish
Quiet, powerful, compact bathroom ventilation fan
Exhaust is two to four times greater than traditional bathroom fans
Suitable for direct shower ventilation
Suitable for use with multiple ventilation points
Designed to handle long duct runs
May be mounted in any position
Five year warranty
Fans are HVI certified for airflow and power at 0.2″ SP
Learn more about AXC in-line duct fans

Helpful Tips

AXC fan mounts easily to attic joists with the exclusive Continental Fan mounting bracket.
Always use insulated duct in unheated spaces.
When direct venting a shower, or if noise is a significant factor, use insulated flexible duct to reduce condensation and/or noise levels.
Add a DFC digital fan control for smart control technology and energy savings.

How much airflow is required?

HVI recommends ventilation rates based on 8 air changes per hour. For most bathrooms this works out to 1 cfm per square foot of area, with a minimum of 50 cfm.

A bathroom less than 100 square feet:
- Calculate 1 cfm per square foot of floor area. A minimum of 50 cfm is the required ventilation rate.
A bathroom larger than 100 square feet:
- To calculate the proper ventilation rate, add the cfm requirement for each fixture; toilet 50 cfm,shower 50 cfm, bathtub 50 cfm, jetted tub 100 cfm. Note: For proper sizing,the static pressure (SP) needs to be calculated.

What is HVI?

HVI, also known as the Home Ventilating Institute, is an independent non-profit organization that certifies fan performance characteristics and provides HVAC guidelines for consumers. All AXC Fan models are HVI certified. Learn more about HVI at HVI.org.
