Home / E-CATALOG / Industrial / Centrifugal Blowers & Fans / PRD Radial Blade Pressure Blowers
PRD Radial Blade Pressure Blowers

PRD Radial Blade Pressure Blowers

Description

PRD radial blade pressure blowers are superbly crafted, precision balanced air-moving packages. They feature superior performance, a compact design and heavy-welded steel housing and motor base. The motor horsepower ranges from 1/3 hp to 7-1/2 hp. These industrial and commercial blowers are ideal for a variety of ventilation applications. Applications include process ventilation, fume exhaust, high pressure applications, corrosive air exhaust and more. The self-cleaning cast aluminum wheels are ideal for small exhaust systems where air is laden with dirt, lint or foreign material. PRD Blowers may also be used to supply high-pressure air for cooling applications and conveying systems.

Features & Benefits of PRD Radial Blade Pressure Blowers

  • Welded 16-gauge steel housing and motor base
  • Dynamically balanced cast aluminum impeller
  • Self cleaning wheel designed for efficient operation
  • Baked polyester powder coat finish
  • Single or three phase TEFC motors; also available without motor
  • Explosion proof motors available – consult factory
  • Standard discharge: CW bottom horizontal; rotatable to 8 positions
  • Field adjustable rotation and discharge
  • Direct drive capacities to 2,100 cfm

Accessories / Options

  • Weather proof motor cover
  • Inlet and discharge screen
  • Custom coatings
  • Inlet and discharge flanges
  • Factory mounted motors
  • Spark resistant construction

Applications for PRD Radial Blade Pressure Blowers

  • Welding exhaust
  • Particle exhaust
  • Corrosive air exhaust
  • Hazardous location exhaust
  • Fume exhaust
  • Smoke exhaust
  • High pressure applications
  • Dust removal
  • Process ventilation

Airflow Performance (cfm) at 3500 rpm

MODEL

MOTOR
HP
dBA
@5'
0.25"
SP
0.5"
SP
1.0"
SP
1.5"
SP
2.0"
SP
2.5"
SP
3.0"
SP
3.5"
SP
PRD-081/374283274256237216192165129
PRD-093/477475465445423399374346316
PRD-111-1/284786772746719692664635606
PRD-1239011851171114511171090106210331004
PRD-147-1/29221002079203719951952190918661822
MODEL

4.0"
SP
5.0"
SP
6.0"
SP
7.0"
SP
8.0"
SP
9.0"
SP
10.0"
SP
11.0"
SP
12.0"
SP
PRD-0870
PRD-09282195-------
PRD-11575508431329-----
PRD-12974911842765672549---
PRD-141777168515871482136712361081874474

Visit CFM Select to utilize Continental Fan’s state-of-the-art fan selection and quotation platform.

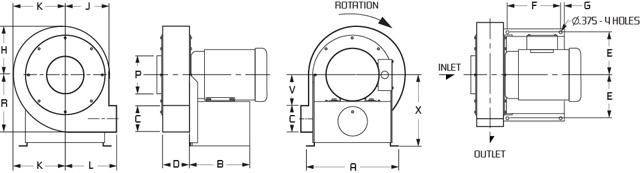

Fan Dimensions

  • Select Charts / Diagrams tab below

To find the fan that best suits your application, view our full line of centrifugal blowers. From the rugged construction of a heavy-duty cast aluminum blower to the compact design of a radial bladed blower and the highly efficient airfoil designs in between, Continental Fan’s blowers and fans deliver reliable performance and provide better airflow by design.

  • PDF BROCHURE
  • PDF DIMENSIONAL DRAWING
